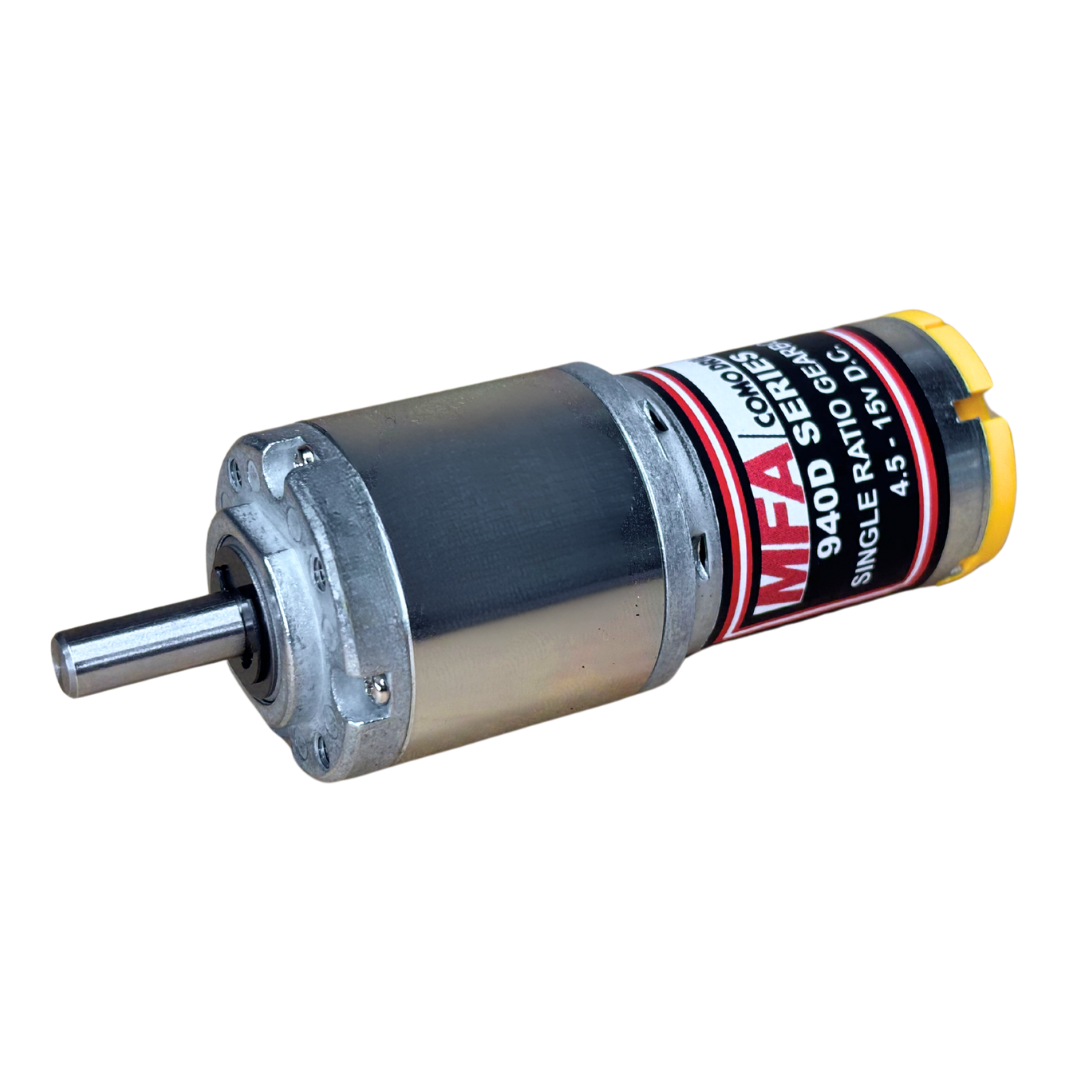

940D Series 385 DC Motor + Gearbox (4.5 - 15v / 24v)

Designed for heavy-duty industrial and model applications this robust unit boasts a powerful high quality, five-pole motor with sintered bronze bearings. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox.

Motor Data:

385 DC Brushed Motor

• Voltage : 6-15v
• Dimensions: 38 (mm long) x 27.5 (mm dia)
• Weight: 66g
• Shaft Length: 11.5mm
• Shaft Dia: 2.305mm

Gearbox Data: Ratio-dependent - see product data sheet.
