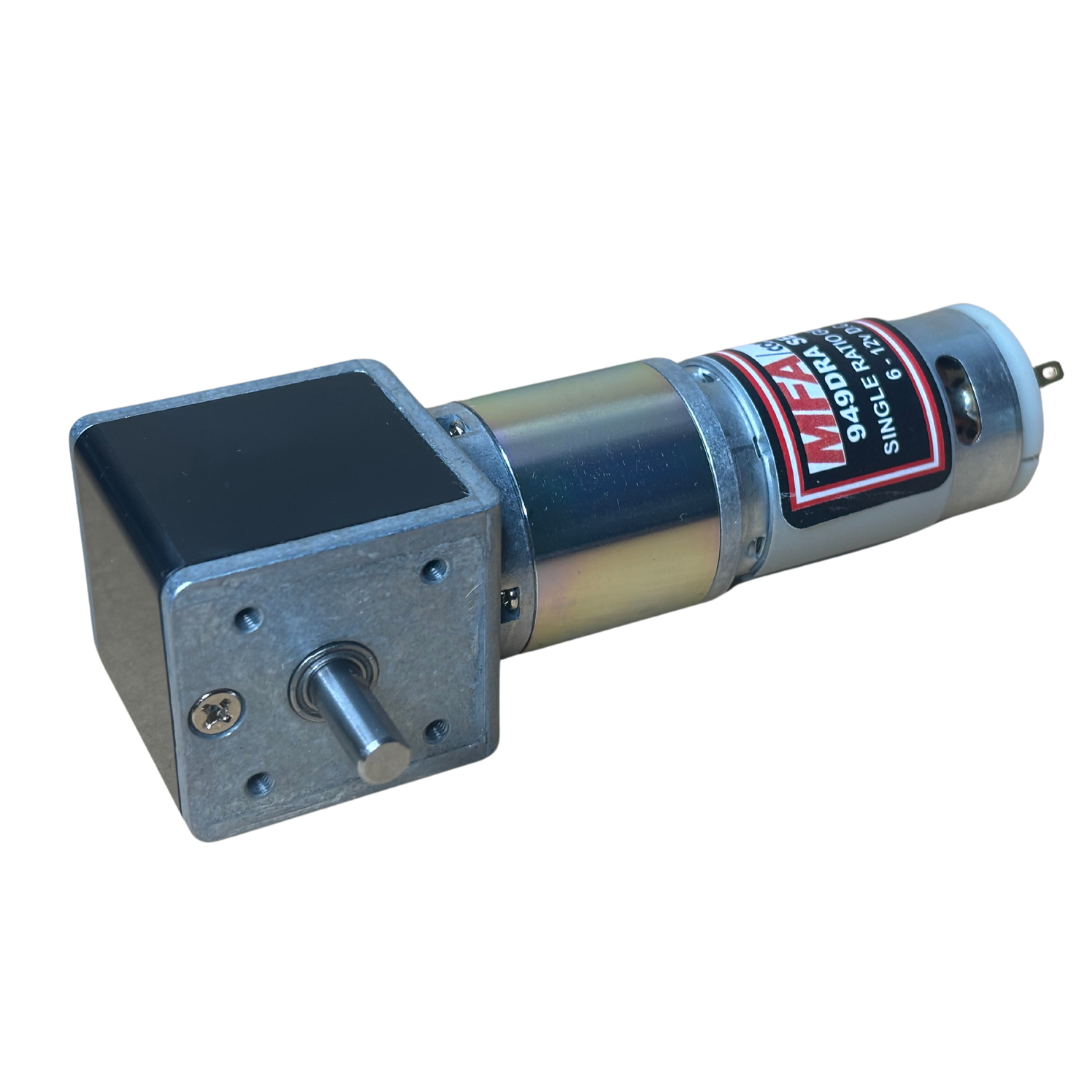

949DRA Series 385RA DC Motor + Gearbox (6 - 12v)

949DRA Series 35mm Planetary (Epicyclic) Geared Motor (Carbon Brushes). Output via right-angle bevel gearbox.

Designed for medium-duty industrial applications. This precise and robust bevel geared unit with 1:1 final drive, boasts a quality 5-pole motor with carbon brushes. Reduction is via steel gears with an acetyl first stage. The output shaft is 6mm in diameter with a key flat. These units are suitable for low-noise applications.

• Motor Type: 5-pole DC motor with carbon brushes
• Voltage Range: 6V to 12V DC
• Gearbox: Bevel gear with a 1:1 final drive ratio
• Torque Output: Approximately 0.12 Nm
• Speed Range: 100 RPM at 12V
• Shaft Diameter: 5mm
• Shaft Length: 100mm

Gearbox Data - See product data sheet.
