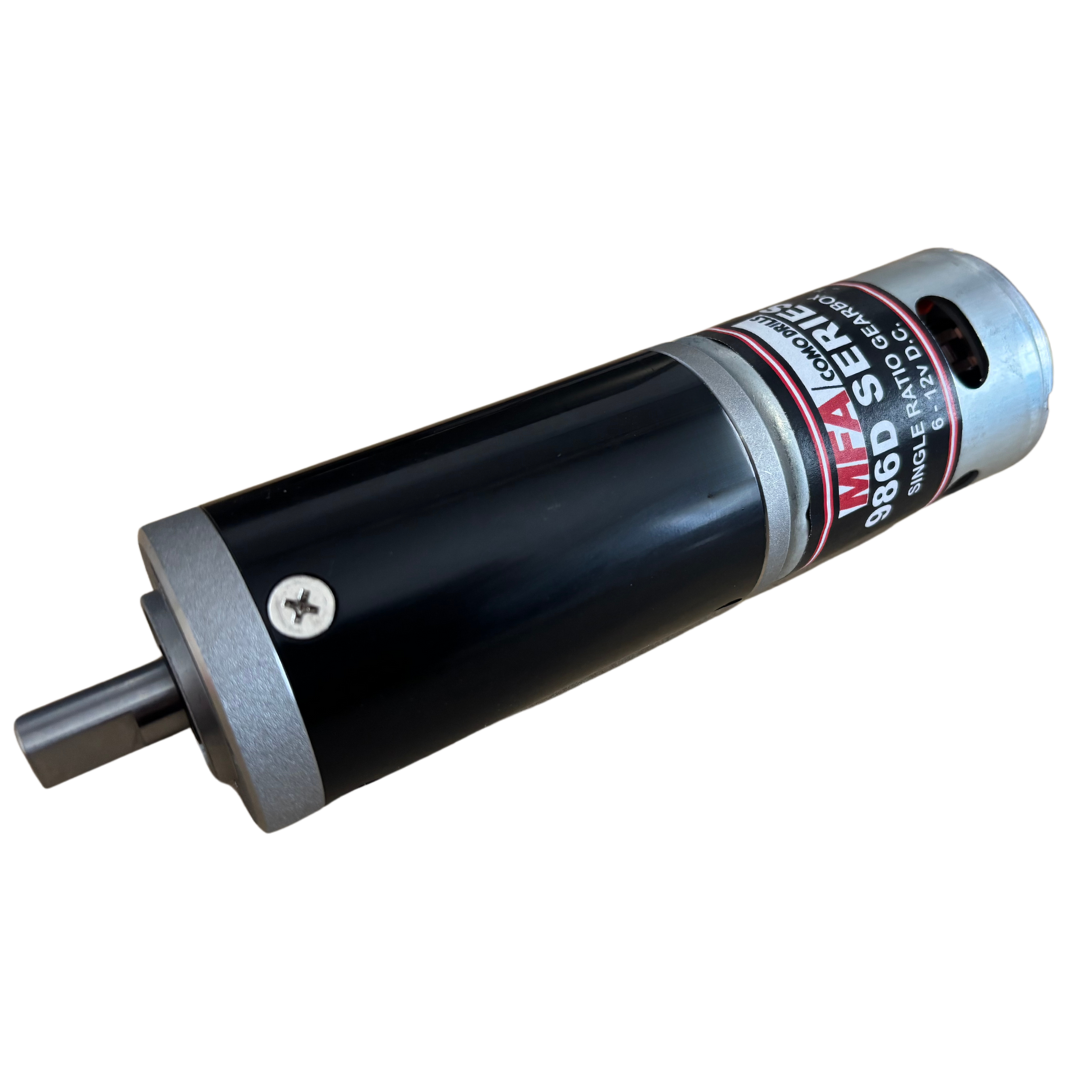

986D Series DC Motor + Gearbox (6-12v)

986D Series DC Motor + Gearbox (6-12v)

Designed for heavy-duty industrial and model applications, this robust unit boasts a powerful high quality motor with scintered bronze bearings. The metal gearbox incorporates ballrace bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The extended rear motor shaft can facilitate encoder installation.

Motor Data :

800 DC Brushed Motor

• Voltage: 12v
• Dimensions: 69 (mm long) x 51.8 (mm dia)
• Weight: 595g
• Shaft Length: 13.2mm
• Shaft Dia: 6.35mm

Gearbox Data: Ratio dependent - see product data sheet.
