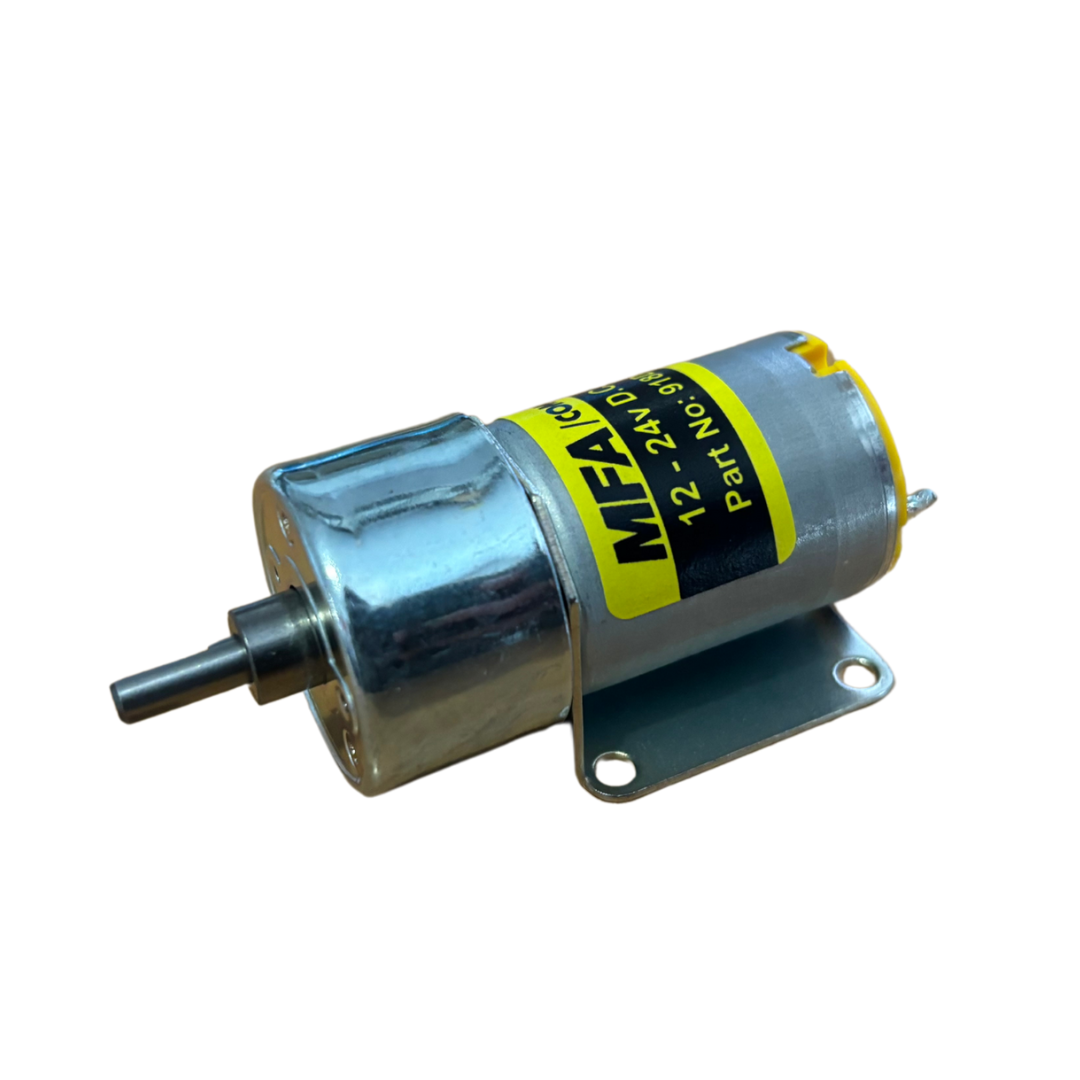

918D Series 280/1 DC Motor + Gearbox (12 - 24v)

918D Series - RE280/1 DC Motor : 12-24V

Weight: 73-89g (ratio dependent)

This miniature gearbox is of steel and brass construction with brass gears and is mounted on a 1mm thickness steel bracket. It incorporates a high-quality three-pole motor with sleeved bearings. The design and construction of the unit make it suitable for a host of model and light industrial applications.

Motor Performance Data (at 12v):

• No Load Speed: 8224 RPM
• No Load Current: 0.046 A
• Speed @ Max Efficiency: 6636 RPM
• Current @ Max Efficiency: 0.194 A
• Torque @ Max Efficiency: 0.27 oz-in (19.2 g-cm)
• Output Power: 1.31 W
• Efficiency: 56.1%
• Stall Torque: 1.389 oz-in (99.3 g-cm)
• Stall Current: 0.81 A

Gearbox Specifications:

• Gearbox Type: 25mm Single Ratio Metal Gearbox
• Construction: Steel and brass with brass gears
• Mounting: 1mm thick steel bracket
• Motor Compatibility: RE280, RE280/1, RE280/5
• Backlash (no load): Max 2 degrees
• Max Radial Load: 300gf (10mm from flange)
• Shaft Axial Load: 200gf
• Output Shaft Diameter: 4mm
• Cover: Metal gearbox cover included
• Bracket: Metal bracket included
