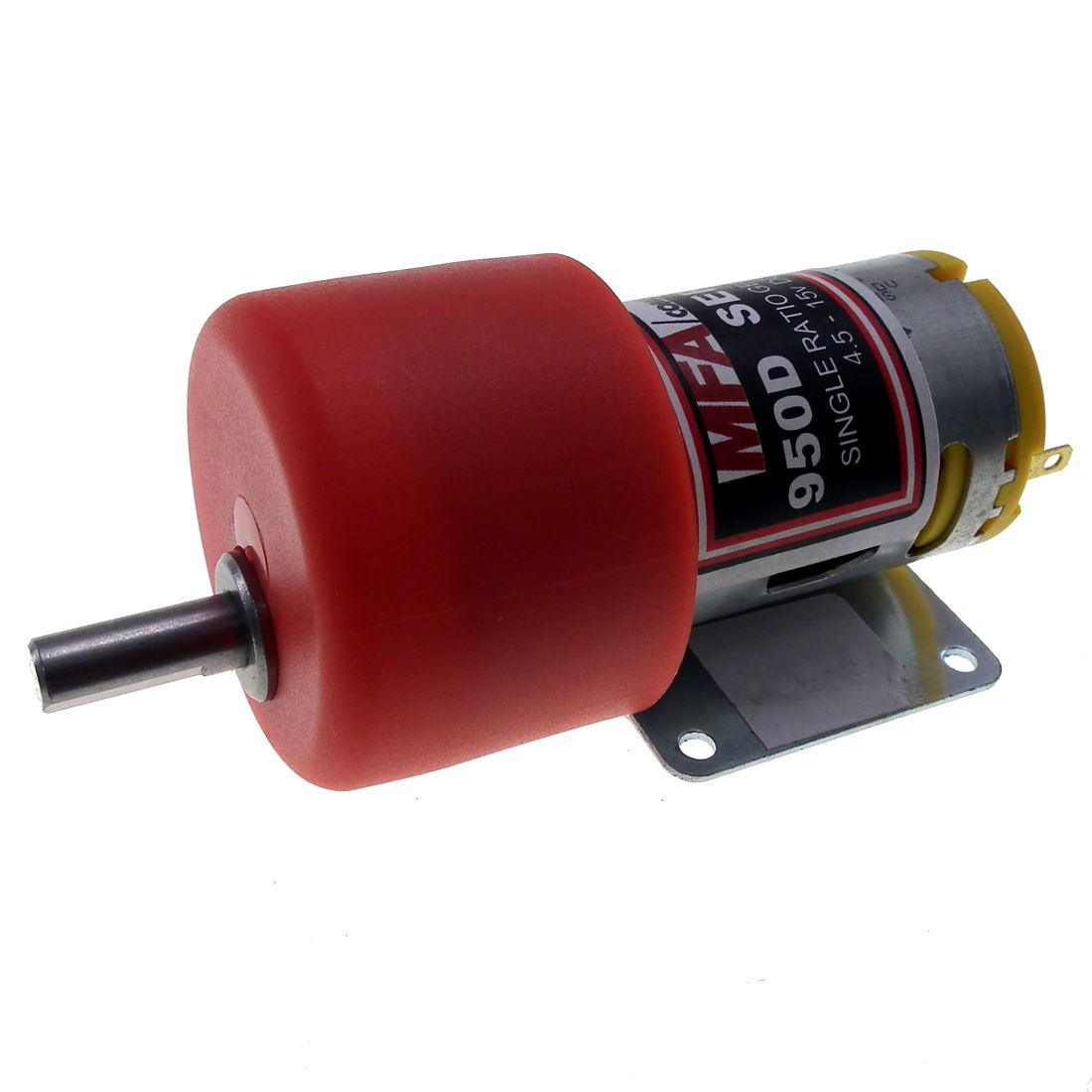

950D Series 385 DC Motor + Gearbox (Offset Output Shaft) 4.5-15v

950D Series 385 DC Motor + Gearbox (Offset Output Shaft) 4.5-15v.

Designed for heavy-duty industrial and model applications this robust unit boasts a powerful high quality, five pole motor with
sintered bronze bearings. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be
transmitted through the gearbox. The unit is mounted on a 1mm thick plated steel bracket.

Motor Data :

• 385 DC Brushed Motor
• Voltage : 6-15v
• Dimensions: 38 (mm long) x 27.5 (mm dia)
• Weight: 66g
• Shaft Length: 11.5mm
• Shaft Dia: 2.305mm

Gearbox Data: Ratio dependent - see product data sheet.
