918D Series 280/5 DC Motor + Gearbox (3 - 6v)

918D Series - RE280/5 DC Motor : 3-6V

Weight: 73-89g (ratio dependent)

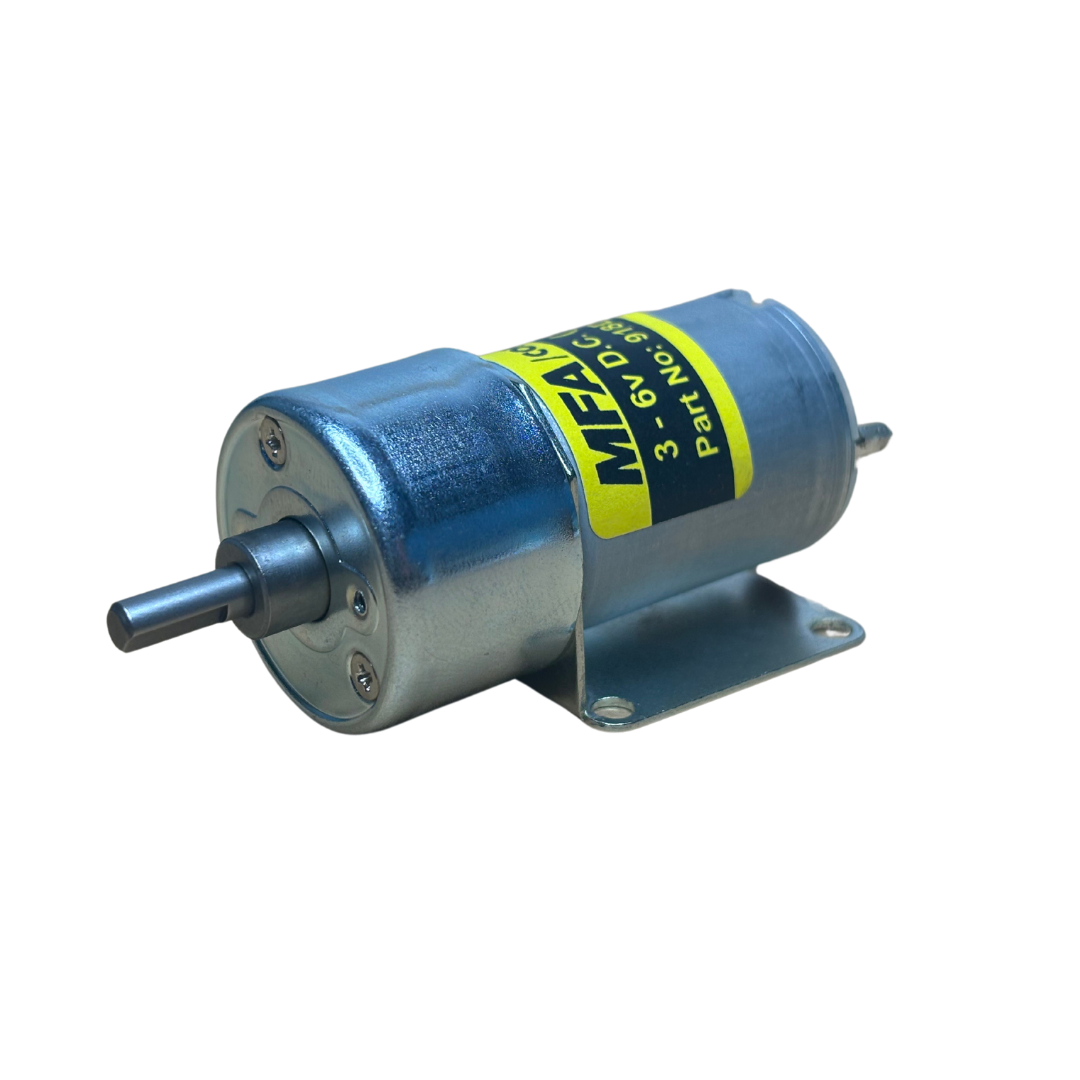

This miniature gearbox is of steel and brass construction with brass gears and is mounted on a 1mm thickness steel bracket. It incorporates a high-quality three-pole motor with sleeved bearings. The design and construction of the unit make it suitable for a host of model and light industrial applications.

Motor Performance Data (at 6v):

• No Load Speed: 9256 RPM
• No Load Current: 0.108 A
• Speed @ Max Efficiency: 7703 RPM
• Current @ Max Efficiency: 0.534 A
• Torque @ Max Efficiency: 0.33 oz-in (23.7 g-cm)
• Output Power: 1.87 W
• Efficiency: 58.4%
• Stall Torque: 2.648 oz-in (141.2 g-cm)
• Stall Current: 2.65 A

Gearbox Specifications:

• Gearbox Type: 25mm Single Ratio Metal Gearbox
• Construction: Steel and brass with brass gears
• Mounting: 1mm thick steel bracket
• Motor Compatibility: RE280, RE280/1, RE280/5
• Backlash (no load): Max 2 degrees
• Max Radial Load: 300gf (10mm from flange)
• Shaft Axial Load: 200gf
• Output Shaft Diameter: 4mm
• Cover: Metal  gearbox cover included
• Bracket: Metal bracket included
  *Please view the product data sheet for dimensions and weight of the selected ratio.
