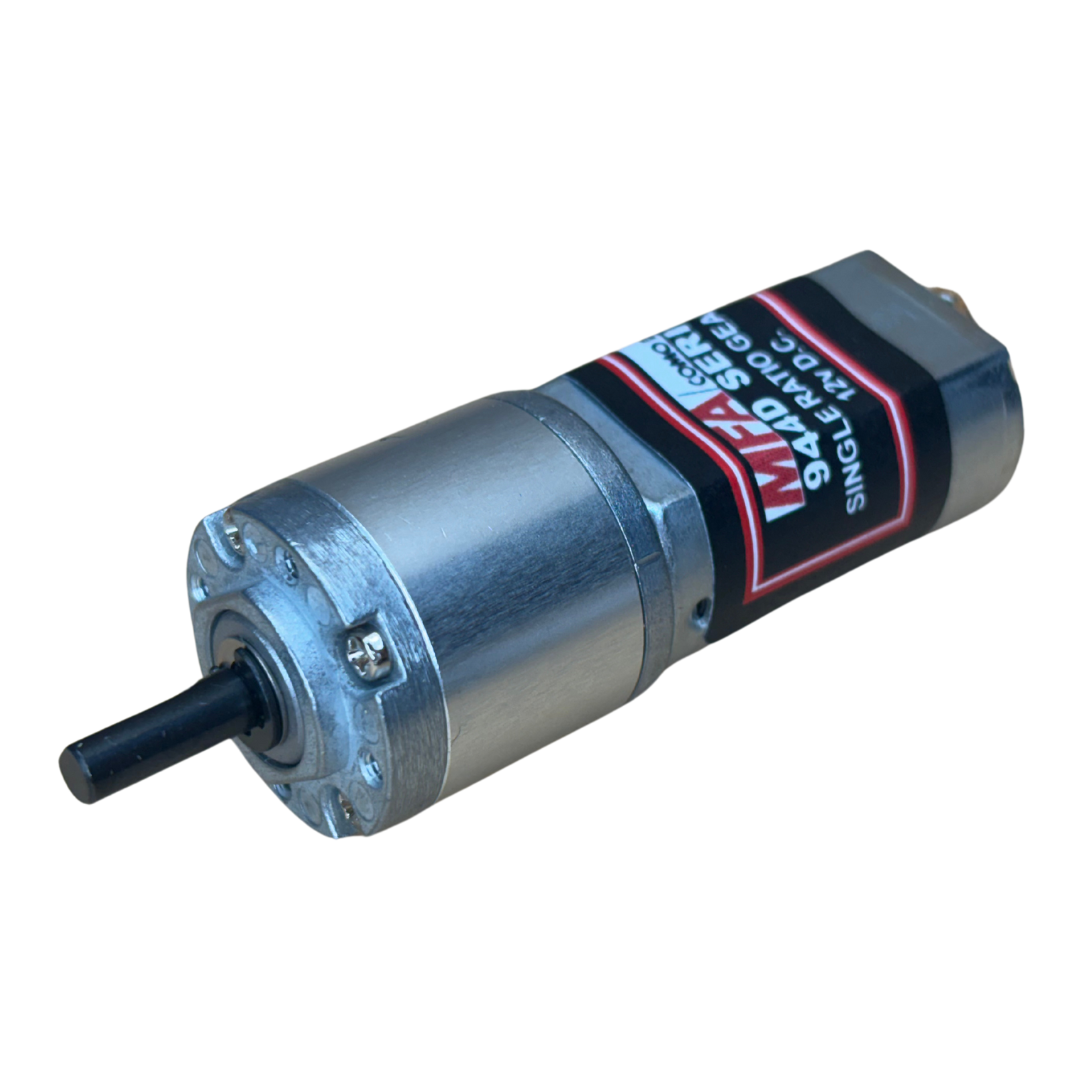

944D Series RE944 DC Motor + Gearbox (6 - 12v)

RE944 DC Motor (6-12v) + Miniature Gearbox , Various Ratios.

This robust unit is designed for smaller industrial and model applications and boasts a powerful high quality motor sintered bronze bearings. The gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox.

Motor Data

• Operating / Nominal Voltage Range: 6.0 V – 12.0 V DC (12 V constant) gotronic.fr
• No-Load Speed (motor side): ~8,000 RPM (motor by itself) gotronic.fr
• No-Load Current: 0.07 A gotronic.fr
• Max Efficiency Point (approx): 6,700 RPM, 0.2 A, producing ~0.25 oz-in (~1.4 g·cm) output

Gearbox Data: Ratio dependent - see product data sheet.
