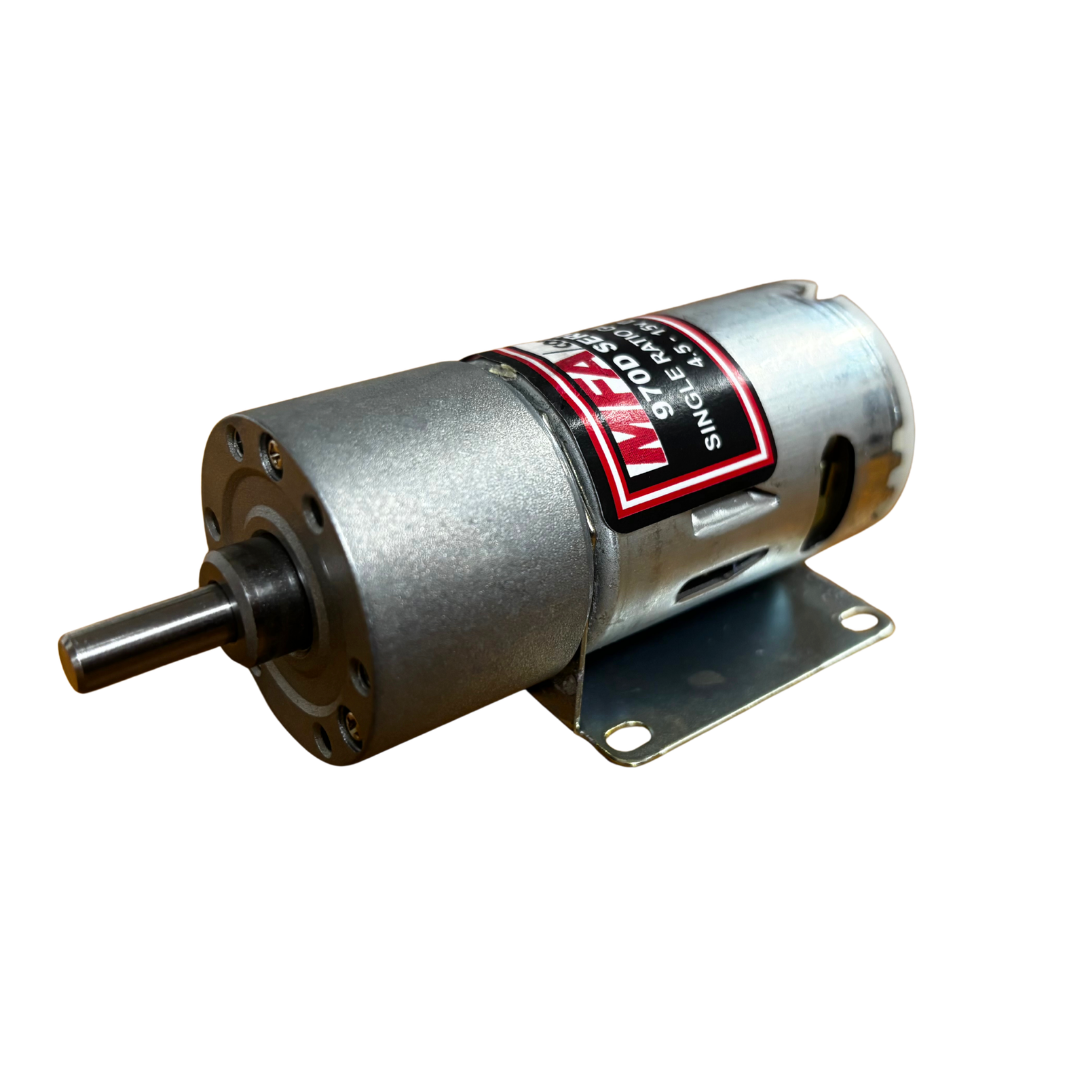

970D Series 540 DC Motor + Gearbox (Centre Output Shaft) 6 - 12v

970D Series 540 DC Motor + Gearbox (Centre Output Shaft) 6 - 12v

Designed for heavy-duty industrial and model applications this robust unit boasts a powerful high quality, three pole motor with sintered bronze bearings. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The unit is mounted on a 1mm thick plated steel bracket.

Motor Data :

• 540 DC Brushed Motor
• Voltage: 4.5-15v
• Dimensions: 50mm (length) x 35.7mm (dia)
• Weight: 146g
• Shaft Length: 9mm
• Shaft Dia: 3.175mm

Gearbox Data: Ratio dependent - see product data sheet.
