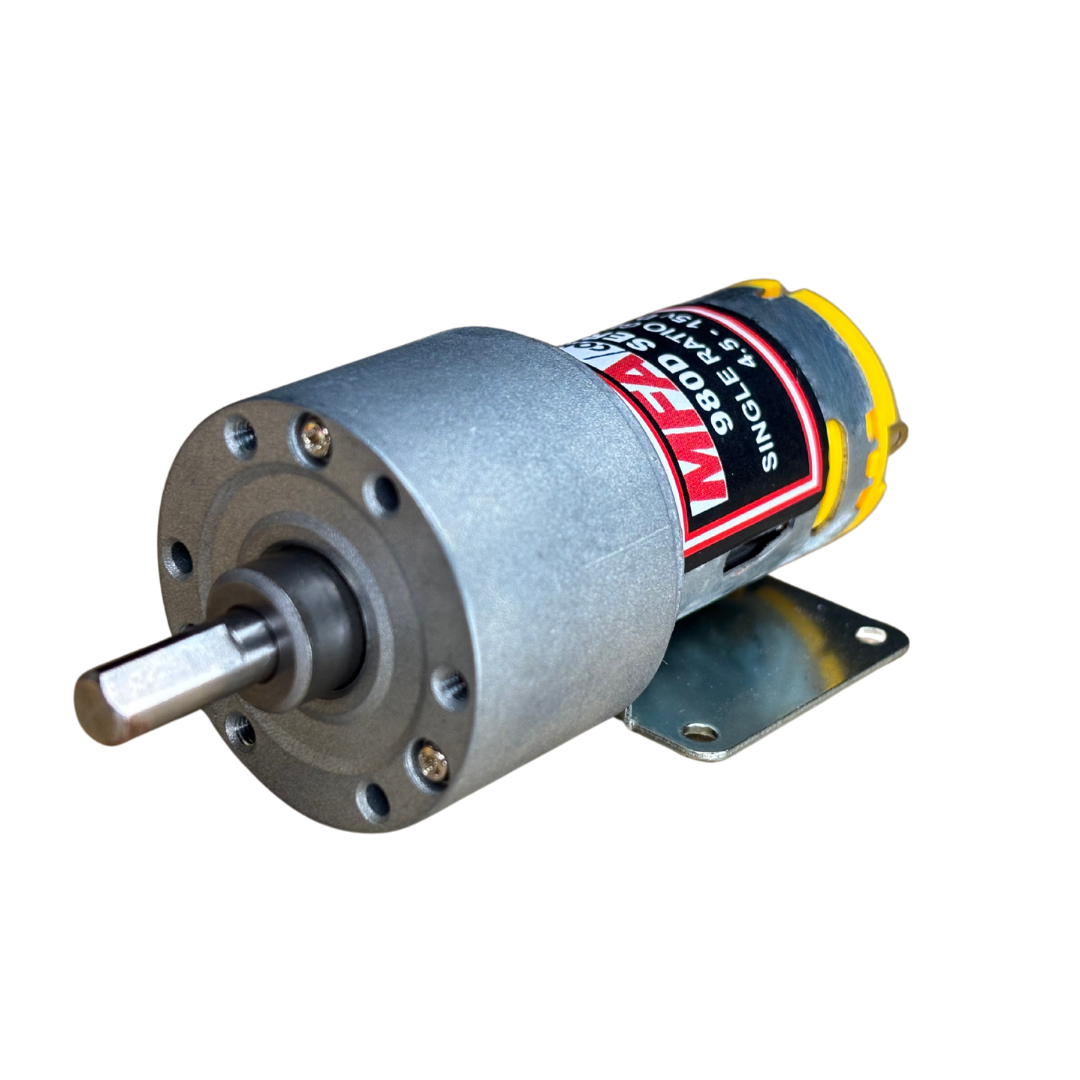

980D Series 385 DC Motor + Gearbox (Centre Output Shaft ) 4.5 - 15v

980D Series 385 DC Motor + Gearbox (Centre Output Shaft ) 4.5 - 15v.

Designed for heavy-duty industrial and model applications this robust unit boasts a powerful high quality, three pole motor wit h
sintered bronze bearings. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be
transmitted through the gearbox. The unit is mounted on a 1mm thick plated steel bracket.

Motor Data :

385 DC Brushed Motor

• Voltage: 6-15v
• Dimensions: 38 (mm long) x 27.5 (mm dia)
• Weight: 66g
• Shaft Length: 11.5mm
• Shaft Dia: 2.305mm

Gearbox Data : Ratio dependent - see product data sheet.
